Enabling Enterprise Networks at the Branch
The Cisco 3945 Integrated Services Router (ISR) delivers highly secure data, voice, video, and application services to the small office. Key features include:
- Modular Services Performance Engine (SPE) 150, which can be upgraded for even higher performance as next-generation WAN environments evolve
- 3 integrated 10/100/1000 Ethernet ports with 2 ports capable of RJ-45 or SFP connectivity
- 4 service module slots
- 4 Enhanced High-Speed WAN Interface Card slots
- 4 onboard digital signal processor (DSP) slots
- 1 Internal Services Module slot
- Dual integrated power supplies
- Fully integrated power distribution to modules supporting 802.3af Power over Ethernet
- Security
- Embedded hardware-accelerated VPN encryption for secure connectivity
- Integrated threat control using Cisco IOS Firewall, Cisco IOS Zone-Based Firewall, Cisco IOS IPS, and Cisco IOS Content Filtering
- Identity management using authentication, authorization, and accounting (AAA) and public key infrastructure
- Unified Communications
- High-density-packet voice DSP module, optimized for voice and video support
- Standards-certified VoiceXML browser services
- Cisco Unified Border Element capabilities for up to 1000 sessions
- Cisco Unity Express voicemail support
- Support for Cisco Communications Manager Express and Survivable Remote Site Telephony
General
EC-MFT-32 IP Base 2901 - 3945E 12.3(14)T IP Base 1841 - 3845 tied to platform slot density EC-MFT-64 IP Base 2901 - 3945E 12.3(14)T IP Base 1841 - 3845 tied to platform slot density 2 ISR Platforms from 1841 to 3845 excluding Cisco 1861. For Module Support on Cisco 1861 ISR, see table 4. Note To install double-wide service modules in the Cisco 3900 series routers, remove the slot divider between slots SM3 and SM4 (3945) and remove the blank panel to the right of SM2 (3925). For complete information about the Cisco enhanced EtherSwitch service modules hardware.
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CISCO3945/K9 |
| Product Type | Router |
| Form Factor | Desktop – modular – 3U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Cisco Unified Communications Manager Express sessions : 350 Cisco Unified SRST sessions : 1200 |
| Network / Transport Protocol | IPSec, PPPoE, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
| Remote Management Protocol | SNMP, RMON |
| Encryption Algorithm | SSL |
| Features | Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN) |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag |
| DRAM Memory | 1 GB (installed) / 2 GB (max) |
| Flash Memory | 256 MB (installed) / 8 GB (max |
| LED Status Lights Indicators | Link activity, power |

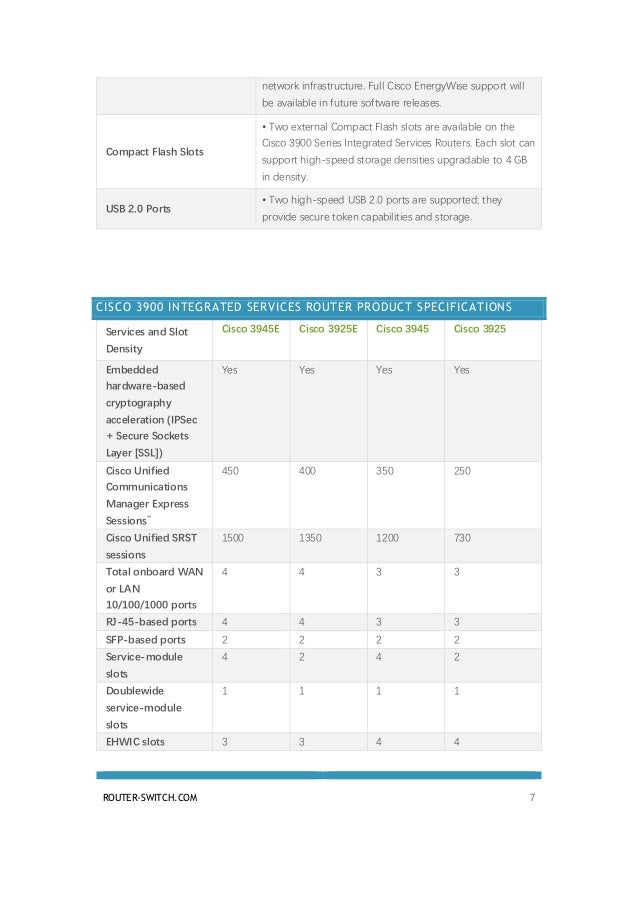

Cisco 3945 Slots Download
Connectivity Slots
| Router Interfaces | 3 x 10Base-T/100Base-TX/1000Base-T – RJ-45 Management : 1 x console – RJ-45 Management : 1 x console – mini-USB Type B Serial : 1 x auxiliary – RJ-45 Hi-Speed USB : 2 x 4 PIN USB Type A 2 x SFP (mini-GBIC) |
| Expansion Slots Total (Free) | 4 ( 4 ) x EHWIC 4 ( 4 ) x PVDM 2 ( 1 ) x CompactFlash Card 1 ( 1 ) x Expansion Slot 2 ( 2 ) x service module (SM) |
Power Supply
| Power Device | Power supply – internal |
| Voltage Required | AC 120/230 V ( 47/63 Hz ) |
Note: The Cisco 3945 router supports two memory slots which has been installed two 512MB memory cards. When upgrading the memory, the same capacity of memory cards must be inserted into the two memory slots in the same time. It doesn't support to use only a single memory slot. The Cisco 3945 router, modular Services Performance Engine (SPE) 150, which can be upgraded for even higher performance as next-generation WAN environments evolve. CISCO3945-V/K9 includes Voice bundle. This bundle provides PVDM3-64 and UC License PAK.
Dimensions / Weight / Miscellaneous
Cisco 3945 Slot Numbering
| Width | 47.6 cm ( 18.74 in) |
| Depth | 43.8 cm ( 17.24 in) |
| Height | 13.3 cm (5.24 in) |
| Package Weight | 21.84 kg ( 48.15 lbs) |
| Weight | 17.7 kg ( 39.02 lbs) |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00,ICES-003 Class A, CS-03, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438 |
